Technical Reference
Specifications –––––––––––––––––––
•Custom : Yes
•standard: ANSI/TIA/EIA－644、IEEE 1596.3
•Voltage range: 2v -5v
•Maximum data transfer rate: 655Mbps
•Swing range:250mv-450mv
•Power supply voltage compatibility：As low as 2V
• Wire range：#30 to #36
• Pitch：0.5mm

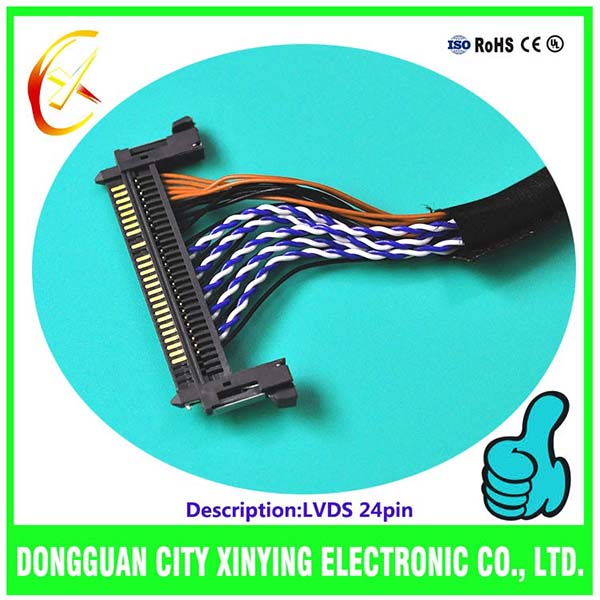

Pictures of Product
Brief Description of Our Product
| Wire | UL1007 UL1015 UL 2464 UL1312 UL1571# 32 to #10 wire harness or according to customer's requirment |
| Wire Length | as the requires |
| Wire Color | as the requires |
| Temperature | -25˚C to +85˚C |
| Voltage | 30-200 V |
| Connector | lvds |
| Pin | 20 and 24 nad 30 pins and custom |
| Pitch | 0.5mm |
| Feature | with low power states, low BER, low crosstalk and low-E |
1. AMP, Molex, JST, OEM connectors and terminal.
2. UL standard cables.
3. RoHS approval.
4. OEM or ODM order are welcome.
5. Multiple choices for products, quickly delivery, best price and can be molding as per your request.
6. Customized designs are accepted with different ways to processing cable assembly based on the requirements.
7. For testing, With latest detection equipment experiment.
8. For After-sale service, professional engineer will help you if any problems.
9. Customers' detailed requires or drawing are welcome.
Production Line of Product
Packing & Shipping of Product
(1) Packing: usually PE inner ,outer carton,or at customer's option.
(2) We have strong coorperation with DHL,FEDEX,TNT,UPS,EMS and China Air Post etc.
You can also choose your own shipping forwarder.
