Technical Reference
Specifications –––––––––––––––––––
Pin Definition：
1. Manufacturer discretion. GM: J2411 GMLAN/SWC/Single-Wire CAN.
2. Bus positive Line of SAE-J1850 PWM and SAE-1850 VPW
3. Ford DCL(+) Argentina, Brazil (pre OBD-II) 1997-2000, USA,
4. Chassis ground
5. Signal ground
6. CAN high (ISO 15765-4 and SAE-J2284)
7. K line of ISO 9141-2 and ISO 14230-4
8. -
9. -
10. Bus negative Line of SAE-J1850 PWM only (not SAE-1850 VPW)
Europe, etc. Chrysler CCD Bus(+)
11. Ford DCL(-) Argentina, Brazil (pre OBD-II) 1997-2000, USA, Europe, etc. Chrysler CCD Bus(-)
12. -
13.
14. CAN low (ISO 15765-4 and SAE-J2284)
15. L line of ISO 9141-2 and ISO 14230-4
16. Battery voltage

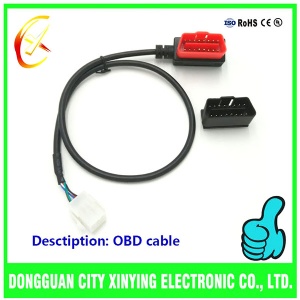

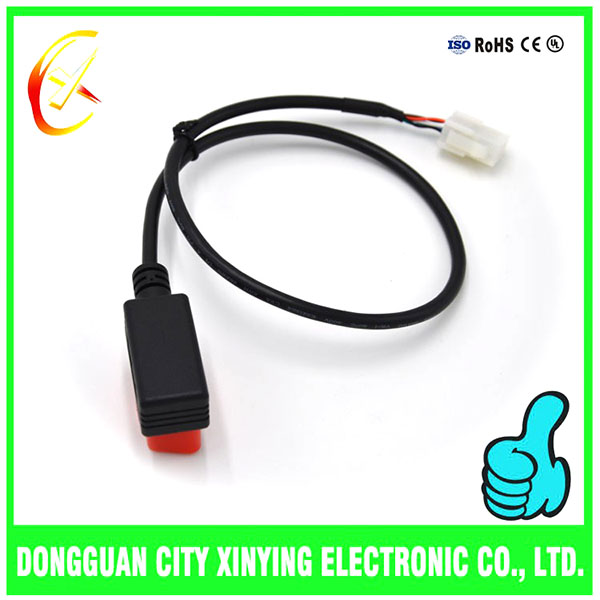

Pictures of Product
Brief Description of Our Product
| Wire | UL1007 UL1015 UL 2464 UL1312 UL1571# 32 to #10 wire harness or according to customer's requirment |
| Wire Length | as the requires |
| Wire Color | as the requires |
| Temperature | -25˚C to +85˚C |
| Voltage | 30-200 V |
| Connector | OBD connector |
| Pin | custom |
| Pitch | [4.00mm (.157") Pitch |
| Feature | Wire-to-Wire connector |
1. AMP, Molex, JST, OEM connectors and terminal.
2. UL standard cables.
3. RoHS approval.
4. OEM or ODM order are welcome.
5. Multiple choices for products, quickly delivery, best price and can be molding as per your request.
6. Customized designs are accepted with different ways to processing cable assembly based on the requirements.
7. For testing, With latest detection equipment experiment.
8. For After-sale service, professional engineer will help you if any problems.
9. Customers' detailed requires or drawing are welcome.
Production Line of Product
Packing & Shipping of Product
(1) Packing: usually PE inner ,outer carton,or at customer's option.
(2) We have strong coorperation with DHL,FEDEX,TNT,UPS,EMS and China Air Post etc.
You can also choose your own shipping forwarder.
