• Current rating: 10 A AC, DC (AWG #16)
• Voltage rating: 250 V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,500 VAC/minute
• Applicable wire: AWG #22 to #16
• Applicable PC board thickness: 1.6 mm

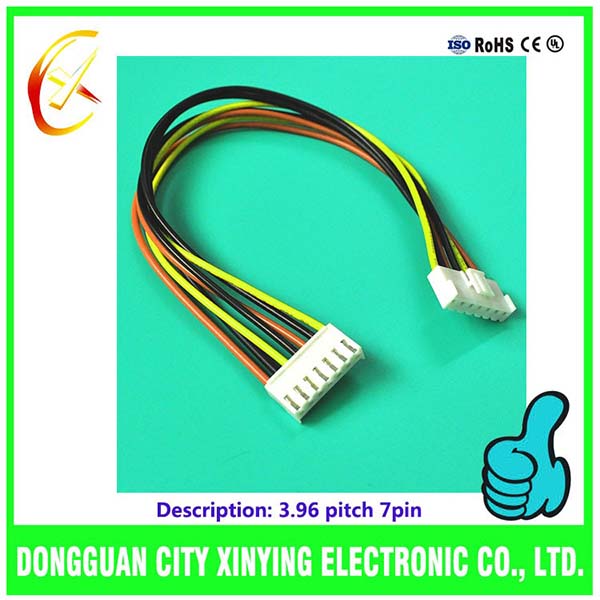

Pictures of Product
Brief Description of Our Product
|Wire||UL1007 UL1015 UL 2464 UL1312 UL1571# 32 to #10 wire harness
or according to customer's requirment
|Wire Length||as the requires|
|Wire Color||as the requires|
|Temperature||-25˚C to +85˚C|
|Pin||2 pins to 6 pins or custom|
|Feature||3.96mm pitch of the wire-to-board type connector|
1. AMP, Molex, JST, OEM connectors and terminal.
2. UL standard cables.
3. RoHS approval.
4. OEM or ODM order are welcome.
5. Multiple choices for products, quickly delivery, best price and can be molding as per your request.
6. Customized designs are accepted with different ways to processing cable assembly based on the requirements.
7. For testing, With latest detection equipment experiment.
8. For After-sale service, professional engineer will help you if any problems.
9. Customers' detailed requires or drawing are welcome.
Production Line of Product
Packing & Shipping of Product
(1) Packing: usually PE inner ,outer carton,or at customer's option.
(2) We have strong coorperation with DHL,FEDEX,TNT,UPS,EMS and China Air Post etc.
You can also choose your own shipping forwarder.
