Technical Reference
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10m Ω max.
After environmental testing/ 20m Ω max.
• Insulation resistance: 1,000M Ω min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #22
• Applicable PC board thickness: 1.6mm

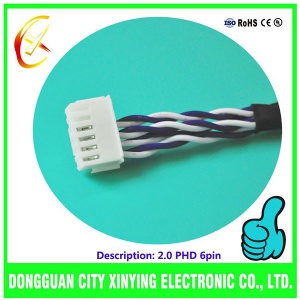

Pictures of Product
Brief Description of Our Product
| Wire |
AWG22 |
| Wire Length | as the requires |
| Wire Color | as the requires |
| Temperature | -25˚C to +85˚C |
| Voltage | 250- 800 V |
| Connector | JST connector |
| Pin | 2 pins to 6 pins or custom |
| Pitch | 2.0mm |
| Feature | 2.0mm pitch of the wire-to-board type connector |
1. AMP, Molex, JST, OEM connectors and terminal.
2. UL standard cables.
3. RoHS approval.
4. OEM or ODM order are welcome.
5. Multiple choices for products, quickly delivery, best price and can be molding as per your request.
6. Customized designs are accepted with different ways to processing cable assembly based on the requirements.
7. For testing, With latest detection equipment experiment.
8. For After-sale service, professional engineer will help you if any problems.
9. Customers' detailed requires or drawing are welcome.
Production Line of Product
Packing & Shipping of Product
(1) Packing: usually PE inner ,outer carton,or at customer's option.
(2) We have strong coorperation with DHL,FEDEX,TNT,UPS,EMS and China Air Post etc.
You can also choose your own shipping forwarder.
NOT YOUR EXPECTED ONE?
DON'T LEAVE!
SEND US YOUR DETAILED DRAWINGS OR SAMPLES.
PROFESSIONAL ENGINEER IS JUST AT YOUR SIDE!
